10019040 | Fischer Elektronik

Extruded heatsink, 150 x 125 x 135 mm, 0.8 to 0.35 K/W, black anodized

Order No.: 65B805
EAN: 4099889472691
MPN:
10019040
SK 109 150 SA
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Min. heat resistance 0.35 K/W
Max. heat resistance 0.8 K/W
Length 150 mm
Width 125 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
78.3615 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
78.36 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
78.3615 €
Description
Technical specifications
Download
Logistics
Compliance

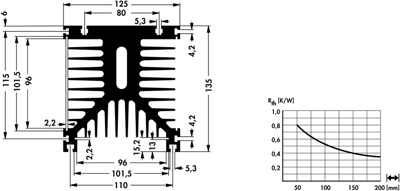

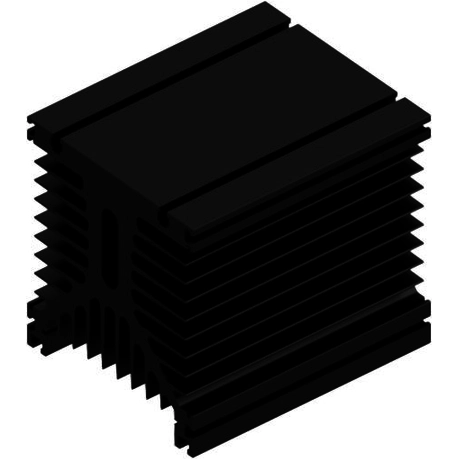

Standard extruded heatsink, SK 109 150 SA, Fischer Elektronik

Standard extruded heatsink with guide away for cover plates or blanks, Thermal resistance: 0.8-0.35 K/W.
Technical specifications
Version profile heatsink
Width 125 mm
Height 135 mm
Length 150 mm
Material aluminum
Max. heat resistance 0.8 K/W
Min. heat resistance 0.35 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
