10036142 | Fischer Elektronik

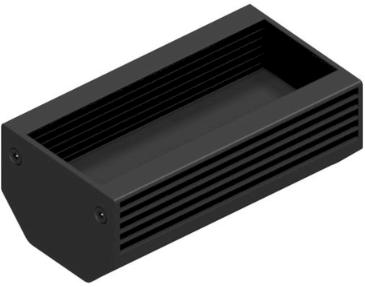

Heat sink for LED, with enclosure, 3.5 K/W, Aluminium, black anodised
Active
Product by Fischer Elektronik at Bürklin Elektronik
Heatsinks for LEDs, type Fischer SK LED 3.
Made of black anodized aluminum.

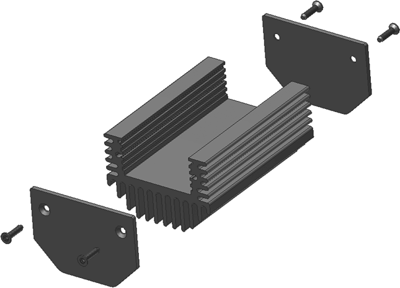

With aluminum housing, type G LED 3 SA.
For mounting flexible and rigid LED Line modules, with option for inserting metal panels and acrylic glass panes. Supplied as kit with 2.0 mm lid panels and mounting material.
Features
- Aluminium casing with cooling fins
- Possibility to insert covers from sheet metal
Applications

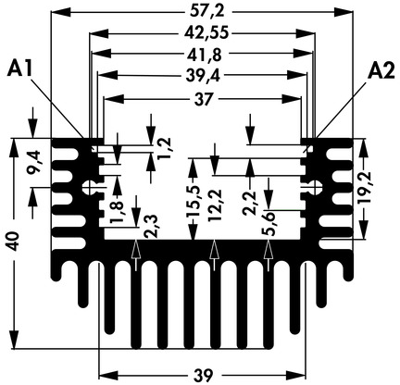

| Width | 57 mm | |
| Colour | black | |
| Height | 40 mm | |
| Length | 100 mm | |
| Material | aluminum |
| Country of origin | DE |
| Customs tariff number | 76169990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
