TUG 05 160 L SA | Fischer Elektronik

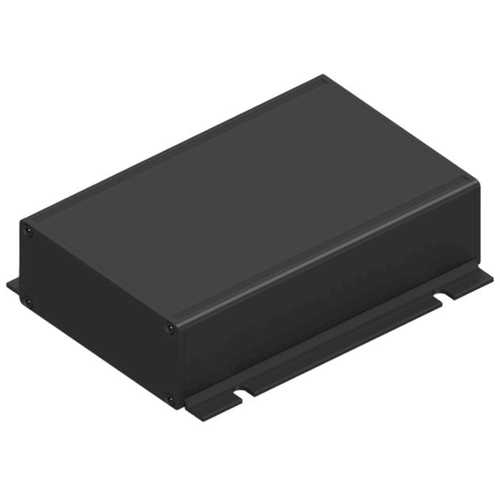

Aluminum tubular enclosure, (L x W x H) 160 x 105 x 44 mm, black, TUG 05 160 L SA
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
27.5009 € *
Standard delivery time from the manufacturer is: 8 Weeks
Tubular housings, type Fischer TUG 03../TUG 05.

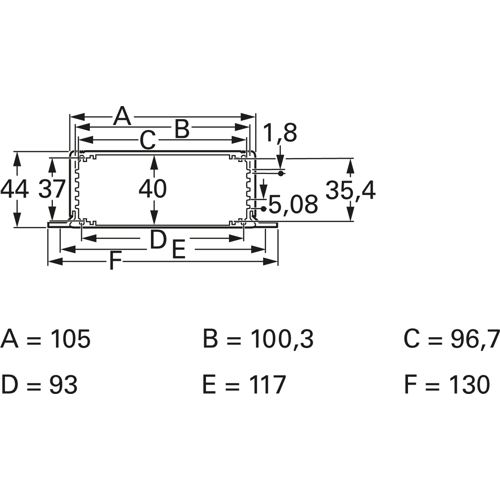

With integrated guide grooves for PCBs (width 100 mm) and 5.08 mm grid (1HP). EMC compatible through surface with chromium-free, transparent passivation. Screwless assembly of the mounting straps; Housing: aluminum, anodized, black. Dimensions type 100L/160L: A 105, B 100,3, C 96,7, D 93, E 117, F 130 mm.
Type: TUG 05 160L SA, tube enclosure, 160 x 105 x 44 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | aluminum | |
| Length | 160 mm | |
| Width | 105 mm | |
| Height | 44 mm | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 73181595 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
