10038936 | Fischer Elektronik
High-power cooling system, LAV 6-150, Cooling systems, 60 mm
Unit Price (€ / pc.)
139.1229 € *
Available: 4 pcs.
Leadtime: On Request **
Total Price:
139.12 € *
Price list
Quantity
Price per unit*
1 pcs.
139.1229 €
5 pcs.
130.7691 €
15 pcs.
125.7711 €
50 pcs.
120.1900 €
*incl. VAT plus shipping costs
**Subject to prior sale

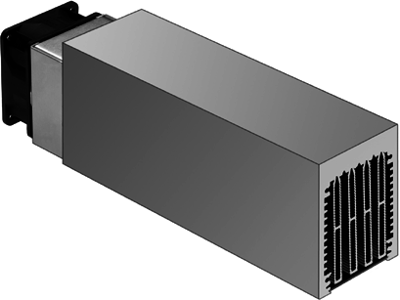

High-performance cooling systems with integrated fan, type Fischer LAV 6-.

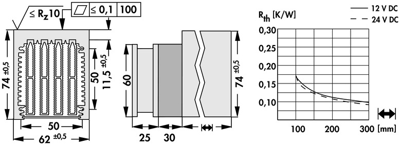

With air chamber, silver colored heatsink, Papst fan with ball bearings, milled mounting surface for cooling semiconductor elements and other components. Heatsink width: 62 mm, Heatsink lenght: 150 mm.
Technical specifications
| Depth | 60 mm | |
| Sound pressure level | 41 db | |
| Width | 60 mm | |
| Height | 25 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C | |
| Type of bearing | ball bearing | |
| Rated voltage | 12 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84145995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
