10038771 | Fischer Elektronik
Miniature fan unit, LAM 4/150, Fan units, 40 mm
Images may differ
Total price
(
79.3611 €
* / pcs.)
79.36 €
Available: 5 pcs.
Next delivery: 5 pcs. on 2023-07-07
Quantity
Price per unit*
1 pcs.
79.3611 €
2 pcs.
74.5892 €
5 pcs.
70.8645 €
10 pcs.
64.4861 €
*incl. VAT plus
shipping costs
Description
Product by Fischer Elektronik at Bürklin Elektronik

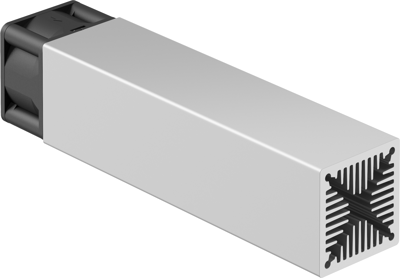

Miniature fan units, type Fischer LAM 4.
Made of silver-colored anodized aluminum, ebm-papst axial fan type 412 JHH, component installation on all sides. Heatsink lenght: 150 mm.
Technical specifications
| Width | 40 mm | |
| Height | 40 mm | |
| Type of bearing | Ball bearing | |
| max. operating temperature | 60 °C | |
| min. operating temperature | -20 °C | |
| Rated voltage | 12 V | |
| Sound pressure level | 46 db | |
| Depth | 150 mm |
Logistics
| Country of origin | DE |
| Customs tariff number | 84145995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
Download
Variations
1 item in 2 variations
*incl. VAT plus
shipping costs
Order No.:
80B4986
Manufacturer:
Fischer Elektronik
Manufacturer SKU:
10038771
1 pcs.
79.3611 €
2 pcs.
74.5892 €
5 pcs.
70.8645 €
10 pcs.
64.4861 €
79.36 € *
Available: 5 pcs.
Next delivery: 5 pcs. on 2023-07-07
150 mm
40 mm
46 db
40 mm
-20 °C
12 V
60 °C
Order No.:
80B4984
Manufacturer:
Fischer Elektronik
Manufacturer SKU:
10038763
1 pcs.
78.1592 €
2 pcs.
73.4706 €
5 pcs.
69.7935 €
10 pcs.
63.5222 €
78.16 € *
Available: 8 pcs.
100 mm
40 mm
46 db
40 mm
-20 °C
12 V
60 °C
