10038763 | Fischer Elektronik
Fan aggregate, 12 V, ball bearing, 46 dB, (H x W x D) 40 x 40 x 100 mm, 10038763
Unit Price (€ / pc.)
77.1120 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
77.11 € *
Price list
Quantity
Price per unit*
1 pcs.
77.1120 €
5 pcs.
73.2921 €
10 pcs.
68.8653 €
25 pcs.
64.0458 €
*incl. VAT plus shipping costs
Subject to prior sale

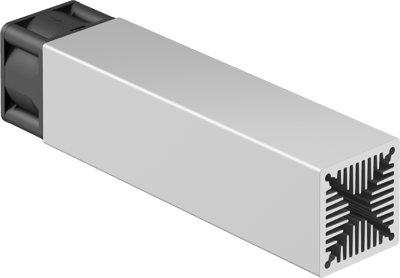

Miniature fan units, type Fischer LAM 4.
Made of silver-colored anodized aluminum, ebm-papst axial fan type 412 JHH, component installation on all sides. Heatsink lenght: 100 mm.

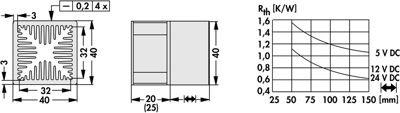

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 40 mm | |
| Type of bearing | ball bearing | |
| max. operating temperature | 60 °C | |
| Rated voltage | 12 V | |
| min. operating temperature | -20 °C | |
| Height | 40 mm | |
| Sound pressure level | 46 db | |
| Depth | 100 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84145995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
