10131717 | Fischer Elektronik

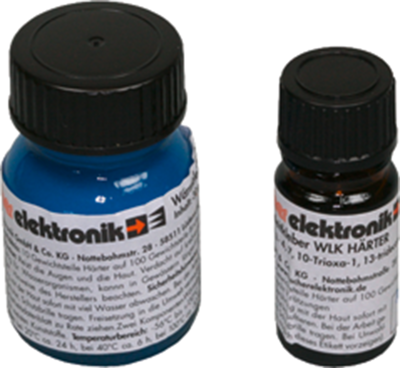

Thermal adhesive 30 g bottle, Fischer Elektronik 10131717
Active
Product by Fischer Elektronik at Bürklin Elektronik
Thermally conductive adhesives for IC heatsinks, type Fischer WLK 30
2C epoxy resin adhesive for porous and non-porous surfaces, thermally conductive, electrically non-conductive, for porous and non-porous surfaces. Hardening time at 20 °C approx. 24 hours, at 25 °C approx. 8.0 hours, at 65 °C approx. 45 minutes, at 120 °C approx. 20 minutes
Mixing ratio: 1 : 10
Specific thermal resistance: 120 °C cm/W
Temperature range: - 56 to +150 °C.
Quantity resin/hardener: small bottle with 30 g/3.0 g
| Version | thermal adhesive | |
| Container | bottle | |
| Colour | blue | |
| Suitable for | Metals, Ceramic, Plastics | |
| Contents | 30 g |
| Country of origin | US |
| Customs tariff number | 35069190 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Gefahrenpiktogramme |
|
| Information on dangerous goods | Signal word: WarningHazard statements:
|
