7S.14.9.012.4220 | Finder
Relay module, 2 Form A (N/O) + 2 Form B (N/C), 12 V (DC), 185.5 Ω, 6 A, 250 V (AC), 7S.14.9.012.4220
Unit Price (€ / pc.)
91.2849 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
91.28 € *
Price list
Quantity
Price per unit*
1 pcs.
91.2849 €
3 pcs.
88.5479 €
10 pcs.
85.4896 €
25 pcs.
83.2167 €
100 pcs.
79.5634 €
*incl. VAT plus shipping costs
**Subject to prior sale

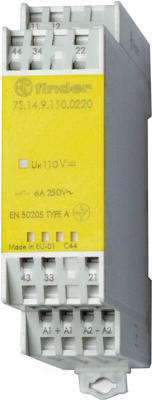

Modular relay, 7S.14.9.012.4220, Finder
Modular relay with forcibly guided contact.
Features
- 4 pole: 2 NO + 2 NC
- For safety applications, with forcibly guided contact relay class A
- For functional safety in mechanical and plant engineering
- Materials comply with the standard for fire protection in rail vehicles
- DC supply version
- Coil status visual indication with LED
- 35 mm rail (EN 60715) mount
Technical specifications
| Connection | screw connection | |
| Contact type | 2 Form A (N/O) + 2 Form B (N/C) | |
| Contact material | AgSnO2 | |
| Breaking capacity | 1500 VA | |
| Switching Voltage (AC) | 250 V | |
| switching current | 6 A | |
| Coil voltage (DC) | 12 V | |
| Coil resistance | 185.5 Ω |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
