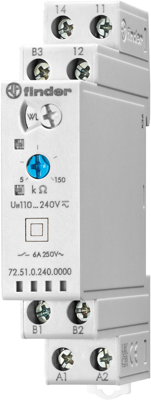

72.51.0.240.0000 | Finder
Monitoring relays, 1 Form C (NO/NC), 240 V (DC), 240 V (AC), 6 A, 400 V (AC), 72.51.0.240.0000
Order No.: 34G1430
EAN: 8012823455648
MPN:
72.51.0.240.0000
725102400000
Unit Price (€ / pc.)
55.7991 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
55.80 € *
Price list
Quantity
Price per unit*
1 pcs.
55.7991 €
3 pcs.
53.5619 €
5 pcs.
51.5032 €
*incl. VAT plus shipping costs
Subject to prior sale
Monitoring relay, 72.51.0.240.0000, Finder
Level control relay for conductive liquids Type 72.51 with Adjustable sensitivity (5-150) kΩ and 6 functions. Delay time (0.5 s or 7 s) selectable. Technical features: emptying or filling functions (6 functions) control about a single level, between Min./Max. limits or Windows mode, ajustable sensitivity (5-150) kΩ, LED indicator, reinforced insulation (6 kV - 1.2/50 μs) between supply and contacts/ electrodes and supply/ contacts and electrodes, 35 mm rail (EN 60715) mount.
Features
- Adjustable sensitivity (5-150) kΩ
- LED indicator
- Reinforced insulation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (AC) | 240 V | |
| Connection | screw connection | |
| Contact material | AgSnO2 | |
| switching current | 6 A | |
| Coil voltage (DC) | 240 V | |
| Switching Voltage (AC) | 400 V | |
| Contact type | 1 Form C (NO/NC) | |
| Breaking capacity | 1500 VA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
