46.52.8.230.0040 | Finder
Relay, 2 Form C (NO/NC), 230 V (AC), 28 kΩ, 8 A, 440 V (AC), 46.52.8.230.0040
Unit Price (€ / pc.)
12.4593 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
12.46 € *
Price list
Quantity
Price per unit*
1 pcs.
12.4593 €
5 pcs.
11.9000 €
10 pcs.
11.3883 €
20 pcs.
10.7695 €
*incl. VAT plus shipping costs
Subject to prior sale

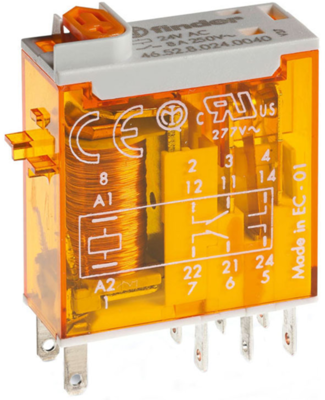

Power relay, 46.52.8.230.0040, FINDER
Features
- 6 kV insulation in coil contacts
- AC coil and DC coil
- Blockable test button and mechanical display
- Sockets for PC board and soldering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (AC) | 230 V | |
| switching current | 8 A | |
| Switching Voltage (AC) | 440 V | |
| Connection | plug-in connection | |
| Coil resistance | 28 kΩ | |
| Contact type | 2 Form C (NO/NC) | |
| Contact material | AgNi |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
