40.61.9.048.0000 | Finder
Relay, 1 Form C (NO/NC), 48 V (DC), 3.5 kΩ, 16 A, 400 V (AC), monostable, 40.61.9.048.0000
This item is no longer available.
As an alternative, we recommend the following item:
Relay, 1 Form C (NO/NC), 48 V (DC), 3.5 kΩ, 16 A, 400 V (AC), monostable, 40.61.9.048.4001
Order No.: 34G1957
Manufacturer: Finder
per pc. 8.7465 € *

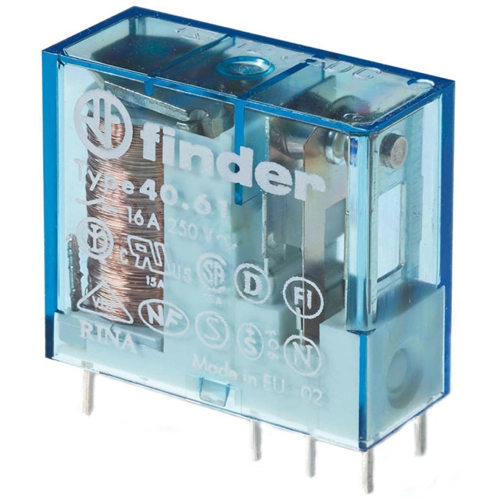

Power relay, 40.61.9.048.0000, FINDER
Features
- PCB mount
- RT II flux proof
- AC coil and DC coil
- 6 kV insulation between coil and contacts
- Coil indication and EMC suppression
Applications
- Medical and dentistry
- Control panels
- Panels for electrical distribution
- Automation for blinds, grilles and shutters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form C (NO/NC) | |
| switching current | 16 A | |
| Coil voltage (DC) | 48 V | |
| Coil resistance | 3.5 kΩ | |
| Switching Voltage (AC) | 400 V | |
| Connection | PCB connection | |
| Coil type | monostable | |
| Grid | 5 mm | |
| Contact material | AgCdO |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Cadmium oxide |
| RoHS conform | Yes |
