4C.01.8.110.0060 | Finder
Coupling relay 1 Form C (NO/NC), 110 V (AC), 6900 Ω, 16 A, 250 V (AC), 4C.01.8.110.0060
Order No.: 34G2674
EAN: 8012823320311
MPN:
4C.01.8.110.0060
4C0181100060
Unit Price (€ / pc.)
21.2058 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
21.21 € *
Price list
Quantity
Price per unit*
1 pcs.
21.2058 €
5 pcs.
20.2776 €
10 pcs.
19.1709 €
20 pcs.
18.1713 €
*incl. VAT plus shipping costs
Subject to prior sale

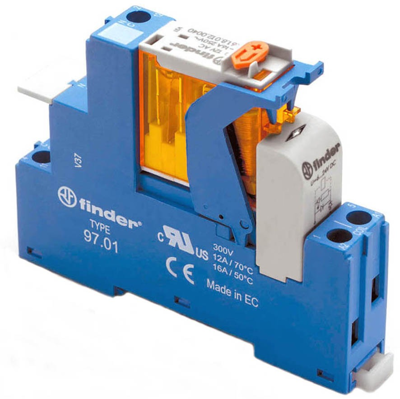

Relay Interface Module, 4C.01.8.110.0060, Finder
Relay Interface Module, 1 CO 16 A, screw terminals, 15.8 mm wide. For interfacing with PLC systems. Equipped with identification plate plus Supply status and EMC coil suppression module. Suitable for mounting on 35 mm rail (EN 60715).
Features
- Coil Indication and EMC suppression module
- Identification label
- UL Listing (relay/socket/jumper link)
- Cadmium-free contacts
Applications
- Escalators
- Road / tunnel lighting
- Hoists and cranes
- Carousel warehouses
- Control panels
- Panels for electrical distribution
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 250 V | |
| Rated current | 16 A | |
| Coil resistance | 6900 Ω | |
| Degree of protection (IP) | IP20 | |
| Product type | coupling relay | |
| Coil voltage (AC) | 110 V | |
| Connection | screw connection | |
| Contact type | 1 Form C (NO/NC) | |
| Status display | LED, green | |
| Contact material | AgNi | |
| LED display | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
