39.61.7.220.0060 | Finder
Coupling relay 1 Form C (NO/NC), 220 V (DC), 6 A, 250 V (AC), 39.61.7.220.0060
Order No.: 34G2787
EAN: 8012823390543
MPN:
39.61.7.220.0060
396172200060
Unit Price (€ / pc.)
21.9198 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
21.92 € *
Price list
Quantity
Price per unit*
1 pcs.
21.9198 €
5 pcs.
20.9678 €
10 pcs.
19.8254 €
20 pcs.
18.7901 €
*incl. VAT plus shipping costs
Subject to prior sale

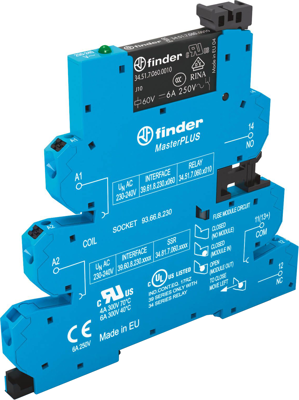

Relay interface module, 39.61.7.220.0060, Finder
MasterPLUS Electromechanical relay interface module with Push-in terminals offers added protection for the output circuit thanks to the replaceable fuse module. This product is for general interface use in any type of system and application. It can be used for input interface applications between auxiliary contacts, sensors etc. and controllers, PLC’s or motor contactors. Or, for output interface between PLC’s controllers and relays, solenoids, etc.
Features
- Common connection possible with optional jumper links (terminals A1, A2 and 11)
- UL Listing (certain relay/socket combinations)
- Special coil leakage current suppression circuit
Applications
- Packaging machines
- Bottling plant
- Traffic light controls
- Carousel warehouses
- Control panels
- Panels for electrical distribution
- Labelling machines
- Hoists and cranes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | push-in clamp | |
| Rated voltage (AC) | 250 V | |
| Contact type | 1 Form C (NO/NC) | |
| Coil voltage (DC) | 220 V | |
| Degree of protection (IP) | IP20 | |
| Contact material | AgNi | |
| Product type | coupling relay | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
