38.61.7.024.4050 | Finder
Coupling relay 1 Form C (NO/NC), 24 V (DC), 6 A, 250 V (AC), 38.61.7.024.4050
Order No.: 34G1351
EAN: 8012823292717
MPN:
38.61.7.024.4050
386170244050
Unit Price (€ / pc.)
19.0162 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
19.02 € *
Price list
Quantity
Price per unit*
1 pcs.
19.0162 €
5 pcs.
18.1951 €
10 pcs.
17.1955 €
20 pcs.
16.3030 €
*incl. VAT plus shipping costs
Subject to prior sale

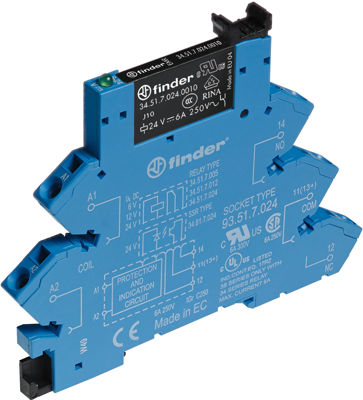

Relay interface module, 38.61.7.024.4050, Finder
Electromechanical relay interface module with screwless terminals, 1 CO rated 6 A/250 V AC, 6.2 mm wide, 35 mm rail (EN 60715) mounting, for PLC or other systems.
Features
- Integral coil indication and protection circuit
- Quick and easy ejection of relay by plastic retaining clip
Applications
- Bottling plant
- Packaging machines
- Control panels
- Traffic light controls
- Vending machines
- Programmable controllers
- Panels for electrical distribution
- Labelling machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 24 V | |
| Rated current | 6 A | |
| Degree of protection (IP) | IP20 | |
| Rated voltage (AC) | 250 V | |
| Connection | spring-clamp connection | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgSnO2 | |
| Product type | coupling relay |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
