VII-H05VVF3G075-G30+0492/3,00M SW9005 | FELLER

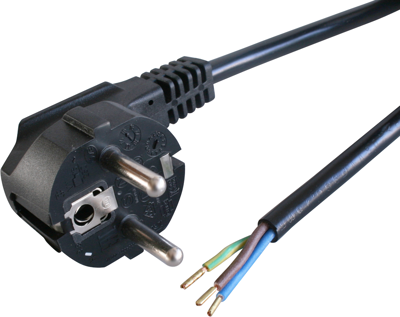

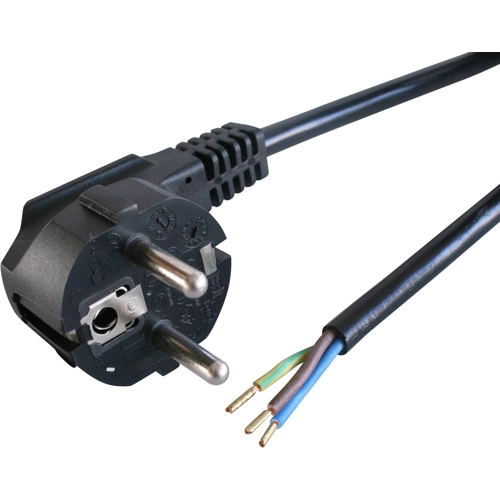

Connection cable, Europe, Plug Type E + F, angled on open end, H05VV-F3G0.75mm², black, 3 m
Active
Product by FELLER at Bürklin Elektronik
Power cables, type SGS../SWS.
With grounding terminal. Molded Schuko-style plug to DIN 49441 on one end, other end stripped and dressed with wire end ferrules (types with the additional designation Sn with tinned wire ends.); Cable type: CEE (13) 53.. (H05VV-F3G..) compliant with VDE, KEMA-KEUR etc. Type 13: cross-section 3 x 0.75 mm². Type 15: cross-section 3 x 1.5 mm².
With angled Schuko-style plug, type SWS.
Technical attributes (type, color, length): SWS 13, black, 3.0 m
| Connection (1) | Plug Type E + F, angled | |
| Connection (2) | open end | |
| Version | connection cable | |
| Colour | black | |
| Cable type | H05VV-F3G0.75mm² | |
| Cable length | 3 m | |
| Country code | Europe | |
| Cable cross-section | 0.75 mm² | |
| Rated current | 10 A | |
| Standard connection 1 | CEE (7) VII |
| Country of origin | AT |
| Customs tariff number | 85444290 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
