5512811026 | Felder

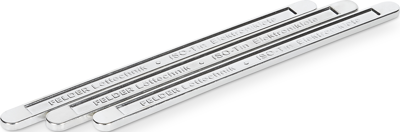

Solder Bar, lead-free, Sn99Ag0.3Cu0.7NiGe, 400 g
Active
Product by Felder at Bürklin Elektronik
Solder Bar, 5512811026, FELDER
Lead-free solder wire is used in industrial assembly production as well as high-temperature applications, for example in the automotive industry (good thermal shock resistance at high temperatures). Continuous temperature resistance at least up to 120°C. Can also be used in older wave soldering systems whose crucibles and nozzles are still made of V2A and do not have protective gassing.
Applications
- Lead-free soldering in the industrial assembly production.
- Continuous temperature resistance at least up to 120° C
- A use in older wave soldering units is also possible, whose pots and nozzles are made of V2A and do not have protective gassing
| Version | Solder Bar | |
| Lead-free | Yes | |
| Weight | 0.4 kg | |
| Halogen free | No | |
| alloy | Sn99Ag0.3Cu0.7NiGe | |
| Melting range | 217-227 °C |
| Country of origin | CN |
| Customs tariff number | 80030000 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Information on dangerous goods | Supplemental Hazard |
