F88516B180G350SM | Feinmetall

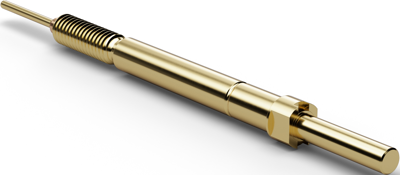

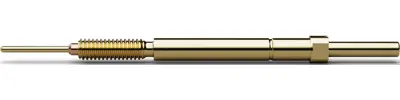

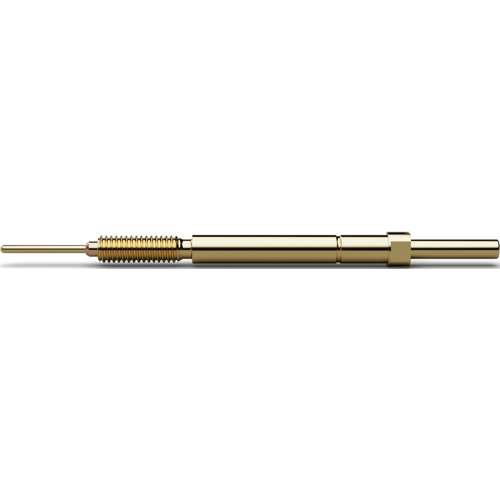

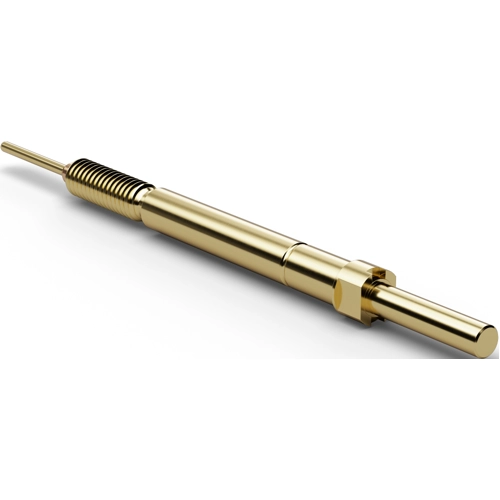

Switching test probe, flathead, Ø 2.65 mm, travel 5 mm, pitch 3.5 mm, L 44.8 mm, F88516B180G350SM
As a private customer, you can buy this item as soon as we have it back in stock.
Threaded switching probes (NO contact) for 3.5 mm grid, type Feinmetall F885.

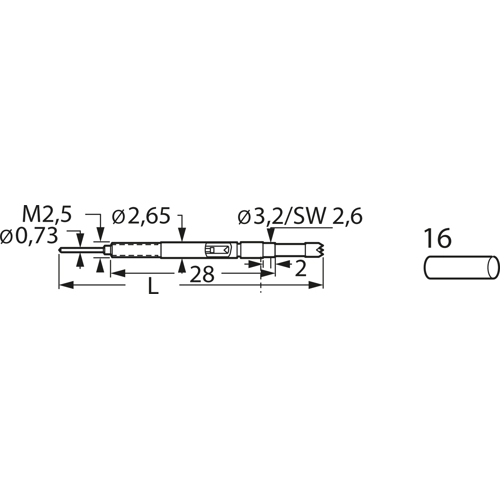

Can be combined with different receptacles. Variable projection height; Maximum spring travel: 5.0 mm. Recommended spring travel: 4.0 mm. Prestress: 80 cN. Contact tolerance: ±0.08 mm, switch travel: 1.7 mm ±0.2 mm. Operating temperatures: –20 to +80 °C, maximum switched current: 1.0 A. Typical contact resistance: 50 mohm. Dimensions L: type S and SM = 44.8 mm, type L and LM = 51.3 mm. Barrel: gold-plated brass. Spring: silver-plated spring steel. Receptacle: gold-plated brass. Tip designs: 05 concave (cup), 06 serrated (honeycomb), 07 hexagonal 90° (fluted star), 16 flat shaft, 17 flat head.
Spring force 350 cN ±20 %, type F885.
Technical attributes (type, plunger with tip diameter (TD), version, material (pl. = plastic), surface (unc. = uncoated, G gold = long-life gold for particularly high endurance)): F885.16SM, switching probe, plunger tip 16, TD 1.8 mm, CuBe, gold
| diameter | 2.65 mm | |
| Stroke | 5 mm | |
| Head shape | flathead | |
| Length | 44.8 mm | |
| Material | copper beryllium | |
| Rated current | 10 A | |
| Grid | 3.5 mm |
| Country of origin | CZ |
| Customs tariff number | 85369095 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
