F70811B085G080ST | Feinmetall

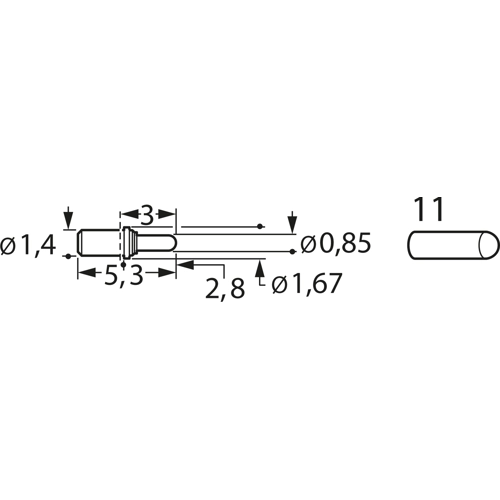

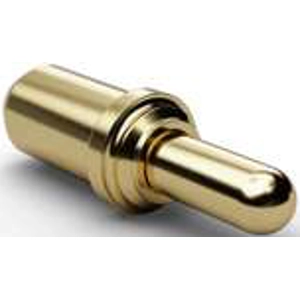

Short stroke test pin with probe, round head, Ø 1.4 mm, travel 1.2 mm, pitch 1.9 mm, L 5.3 mm, F70811B085G080ST
Unit Price (€ / pc.)
4.6410 € *
Available: 158 pcs.
Leadtime: 9 Weeks **
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6410 €
10 pcs.
4.0341 €
100 pcs.
3.7366 €
500 pcs.
3.4391 €
1000 pcs.
3.1297 €
*incl. VAT plus shipping costs
**Subject to prior sale
For restricted heights, type F708.11ST is solder-proof.
Projection height: 3.0 mm
Maximum spring travel: 1.2 mm
Recommended spring travel: 1.0 mm
Prestress: 25 cN
Contact tolerance: ±0.08 mm
Operating temperatures: - 20 to +80 °C (type F708.11ST - 40 to +250 °C)
Maximum continuous current: 3.0 A
Typical contact resistance: 20 mohm
Barrel: gold-plated brass
Spring: silver-plated spring steel
Tip design: 11 round shaft
Type: F708.11, probe with plunger tip 11, TD 0.85 mm, CuBe, gold, 80 cN
Technical specifications
| diameter | 1.4 mm | |
| Stroke | 1.2 mm | |
| Head shape | round head | |
| Length | 5.3 mm | |
| Material | copper beryllium | |
| Rated current | 3 A | |
| Grid | 1.9 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
