F10918B034G050 | Feinmetall

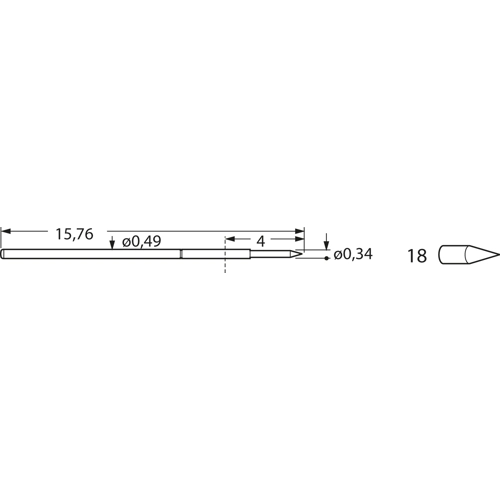

Fine grid test probe with probe head, cone, Ø 0.34 mm, travel 2.3 mm, pitch 1 mm, L 15.76 mm, F10918B034G050
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
8.5561 € *
Available: 494 pcs.
Total Price:
8.56 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5561 €
10 pcs.
7.9254 €
100 pcs.
7.2709 €
500 pcs.
6.8544 €
1000 pcs.
6.1999 €
*incl. VAT plus shipping costs
Subject to prior sale
For applications with low assembly height and small pitch.
Smallest mounting pitch: 1.0 mm
Projection height: 4.0 mm
Maximum spring travel: 2.3 mm
Recommended spring travel: 2.0 mm
Prestress: 10 cN/m
Spring force at recommended spring travel: 50 cN/m ±20 %
Pointing precision: ±0.05 mm
Operating temperatures: - 20 to +80 °C
Maximum continuous current: 1.0 A
Typical contact resistance: 65 mohm
Plunger: CuBe, gold-plated
Barrel: gold-plated new silver
Spring: silver-plated spring steel
Tip design: 18 conical shaft (spear) 30°
Tip diameter: 0.34 mm
Type: F109.18, probe with plunger tip 18
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Head shape | cone | |
| Rated current | 1 A | |
| Stroke | 2.3 mm | |
| Grid | 1 mm | |
| Length | 15.76 mm | |
| diameter | 0.34 mm | |
| Material | steel |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
