SMSC-3R0M-01 | Fastron

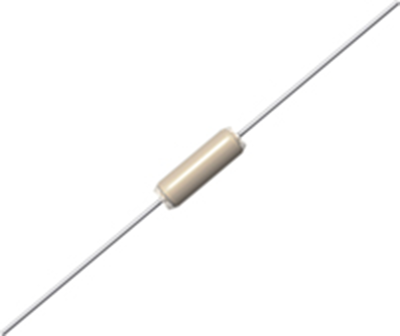

Suppressor choke, axial, 3 µH, 3 A, SMSC-3R0M-01
Unit Price (€ / pc.)
2.0349 € *
Available: 550 pcs.
Available in 4 Days: 8 pcs. - if ordered today
Total Price:
2.03 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0349 €
10 pcs.
1.4518 €
100 pcs.
1.2376 €
500 pcs.
1.0710 €
1000 pcs.
0.9877 €
*incl. VAT plus shipping costs
Subject to prior sale
Suppressor inductor, SMSC-3R0M-01, FASTRON
The SMSC-3R0M-01 is a suppression coil which protects sensitive equipment from the transient voltage (back EMF) generated from the coil during de-energization.
Features
- High rated current
- Low DC resistance
Applications
- RF blocking
- Filtering and decoupling
- Entertainment devices
- Interference suppression
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 3 µH | |
| DC current | 3 A | |
| DC resistance | 46 mΩ | |
| Design | axial | |
| Version | suppressor choke | |
| Saturation current | 3 A | |
| Tolerance | ±20 % | |
| Measuring frequency | 1 MHz | |
| Length | 17 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Reel with 1,500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
