SMSC-1R0M-01 | Fastron

Suppressor choke, axial, 1 µH, 6 A, SMSC-1R0M-01

Order No.: 74D370
EAN: 4099889010435
MPN:
SMSC-1R0M-01
Series: SMSC

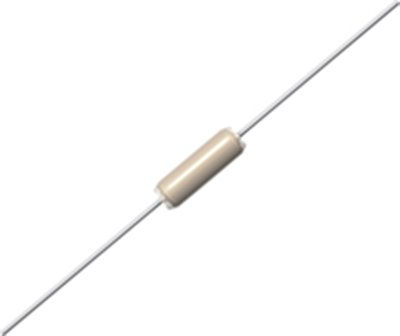

SMSC-1R0M-01 Fastron Fixed Inductors Image 1
SMSC-1R0M-01 Fastron Fixed Inductors Image 2
SMSC-1R0M-01 Fastron Fixed Inductors Image 3
Image may differ
Unit Price (€ / pc.)
3.3320 € *
Available: 314 pcs.
Available in 4 Days: 1,804 pcs. - if ordered today
Total Price:
3.33 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3320 €
10 pcs.
2.0706 €
50 pcs.
1.8207 €
250 pcs.
1.5708 €
1500 pcs.
1.2614 €
*incl. VAT plus shipping costs
Subject to prior sale

Suppressor inductor, SMSC-1R0M-01, FASTRON

The SMSC-1R0M-01 is a suppression coil which protects sensitive equipment from the transient voltage (back EMF) generated from the coil during de-energization.

Features

  • High rated current
  • Low DC resistance

Applications

  • RF blocking
  • Filtering and decoupling
  • Entertainment devices
  • Interference suppression
Technical specifications
Filter Property Value
Inductance 1 µH
Saturation current 6 A
DC current 6 A
Length 17 mm
Design axial
DC resistance 14 mΩ
Version suppressor choke
Tolerance ±20 %
Measuring frequency 1 MHz
Logistics
Property Value
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 1,500 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
