SMCC-101J-01 | Fastron
RF choke, axial, 100 µH, 370 mA, SMCC-101J-01
Unit Price (€ / pc.)
0.9401 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9401 €
10 pcs.
0.5831 €
50 pcs.
0.4760 €
250 pcs.
0.4046 €
1000 pcs.
0.3570 €
*incl. VAT plus shipping costs
Subject to prior sale
Axial wired fixed inductance, SMCC-101J-01, Fastron
Leaded inductors, type Fastron SMCC.
Ultra compact BC (Bobbin Core) chokes. With color coding rings
- With ferrite core, type SMCC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±5 % | |

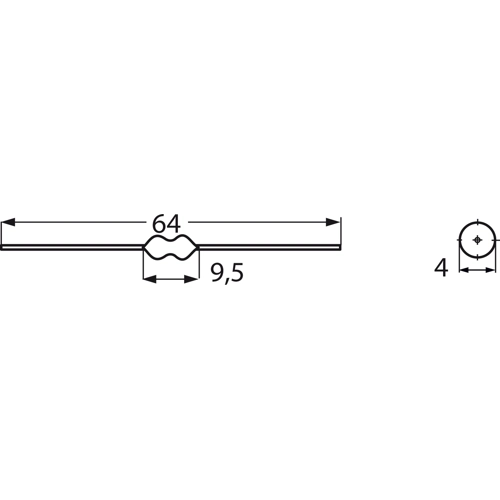

| Length | 9.5 mm | |
| DC current | 370 mA | |
| Measuring frequency | 2.52 MHz | |
| DC resistance | 1.7 Ω | |
| Version | RF choke | |
| Quality Q | Q 30 | |
| Inductance | 100 µH | |
| Design | axial |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 3,500 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
