MISC-3R0M-01 | Fastron

Suppressor choke, axial, 3 µH, 2 A, MISC-3R0M-01

Order No.: 74D362
EAN: 4099889010060
MPN:
MISC-3R0M-01
Series: MISC

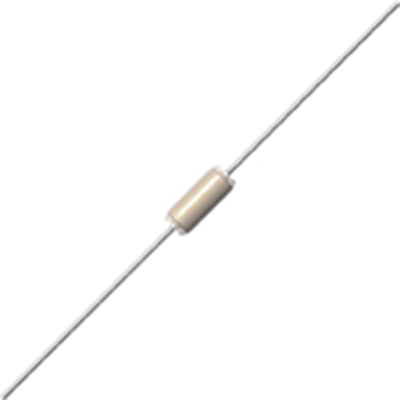

MISC-3R0M-01 Fastron Fixed Inductors Image 1

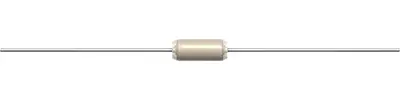

MISC-3R0M-01 Fastron Fixed Inductors Image 2
MISC-3R0M-01 Fastron Fixed Inductors Image 3
Image may differ
Unit Price (€ / pc.)
2.3681 € *
Available: 1,506 pcs.
Total Price:
2.37 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3681 €
10 pcs.
1.9873 €
100 pcs.
1.6898 €
250 pcs.
1.5470 €
1000 pcs.
1.4042 €
*incl. VAT plus shipping costs
Subject to prior sale

Suppressor inductor, MISC-3R0M-01, FASTRON

The MISC-3R0M-01 is a suppression coil which protects sensitive equipment from the transient voltage (back EMF) generated from the coil during de-energization.

Features

  • High rated current
  • Low DC resistance

Applications

  • RF blocking, filtering and decoupling
  • Entertainment devices
  • Interference suppression
Technical specifications
Filter Property Value
Inductance 3 µH
DC current 2 A
DC resistance 93 mΩ
Design axial
Version suppressor choke
Saturation current 2 A
Tolerance ±20 %
Measuring frequency 20 kHz
Length 12 mm
Logistics
Property Value
Country of origin MY
Original Packaging Reel with 1,500 pieces
Customs tariff number 85045000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
