MISC-2R0M-01 | Fastron

Suppressor choke, axial, 2 µH, 3 A, MISC-2R0M-01

Order No.: 74D361
EAN: 4099889010039
MPN:
MISC-2R0M-01
Series: MISC
Fastron

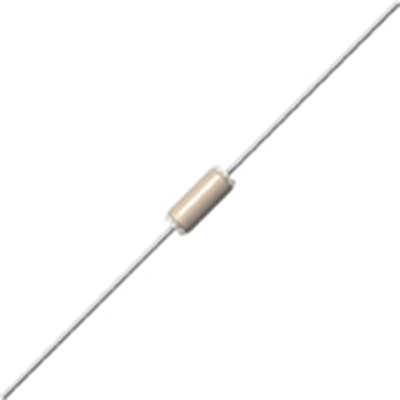

default L

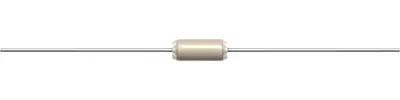

front L

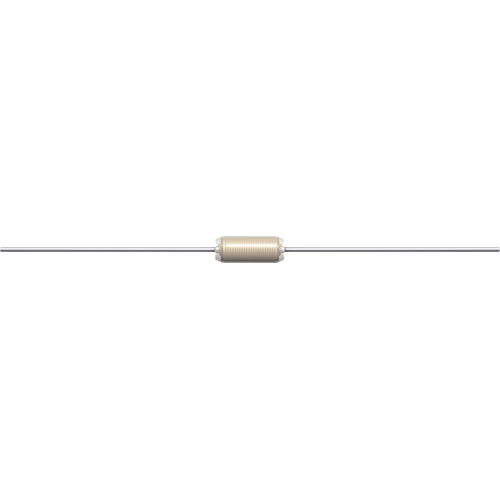

side L
Image may differ
Unit Price (€ / pc.)
1.8564 € *
Available: 2,155 pcs.
Leadtime: 10 Weeks **
Total Price:
1.86 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8564 €
10 pcs.
1.5470 €
100 pcs.
1.3209 €
250 pcs.
1.2019 €
1000 pcs.
1.0948 €
*incl. VAT plus shipping costs
**Subject to prior sale

Suppressor inductor, MISC-2R0M-01, FASTRON

The MISC-2R0M-01 is a suppression coil which protects sensitive equipment from the transient voltage (back EMF) generated from the coil during de-energization.

Features

  • High rated current
  • Low DC resistance

Applications

  • RF blocking, filtering and decoupling
  • Entertainment devices
  • Interference suppression
Technical specifications
Version suppressor choke
Design axial
DC current 3 A
DC resistance 54 mΩ
Inductance 2 µH
Length 12 mm
Measuring frequency 20 kHz
Tolerance ±20 %
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 1,500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Inductance
DC current
DC resistance
Design
Version
Length
Tolerance
1 item in 7 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Inductance
DC current
DC resistance
Design
Version
Length
Tolerance
Suppressor choke, axial, 14 µH, 700 mA, MISC-140M-01
Order No.:
 74D364
Manufacturer:
 Fastron
Manufacturer SKU:
 MISC-140M-01
Available: 885 pcs. Leadtime: 10 Weeks **
Total Price: 1.86 € *
1 pcs.
1.8564 €
10 pcs.
1.5470 €
100 pcs.
1.3209 €
250 pcs.
1.2019 €
1000 pcs.
1.0948 €
14 µH
700 mA
912 mΩ
axial
suppressor choke
12 mm
±20 %
Suppressor choke, axial, 100 µH, 150 mA, MISC-101M-01
Order No.:
 74D367
Manufacturer:
 Fastron
Manufacturer SKU:
 MISC-101M-01
Available: 2,470 pcs. Leadtime: 18 Weeks **
Total Price: 4.61 € *
1 pcs.
4.6053 €
10 pcs.
2.8798 €
50 pcs.
2.5347 €
250 pcs.
2.1896 €
1500 pcs.
1.7731 €
100 µH
150 mA
22.8 Ω
axial
suppressor choke
12 mm
±20 %
Suppressor choke, axial, 30 µH, 400 mA, MISC-300M-01
Order No.:
 74D365
Manufacturer:
 Fastron
Manufacturer SKU:
 MISC-300M-01
Available: 0 pcs. Available in 4 Days: 63 pcs. Leadtime: 1 Week **
Total Price: 1.56 € *
1 pcs.
1.5589 €
10 pcs.
1.4756 €
50 pcs.
1.2971 €
250 pcs.
1.1305 €
1000 pcs.
0.9877 €
2500 pcs.
0.9044 €
30 µH
400 mA
3.24 Ω
axial
suppressor choke
12 mm
±20 %
Suppressor choke, axial, 6 µH, 1.5 A, MISC-6R0M-01
Order No.:
 74D363
Manufacturer:
 Fastron
Manufacturer SKU:
 MISC-6R0M-01
Available: 0 pcs. Available in 4 Days: 984 pcs. Leadtime: 1 Week ** Next delivery: 165 pcs. on 2024-04-30
Total Price: 2.98 € *
1 pcs.
2.9750 €
10 pcs.
1.8564 €
50 pcs.
1.6303 €
250 pcs.
1.3923 €
1500 pcs.
1.1305 €
6 µH
1.5 A
228 mΩ
axial
suppressor choke
12 mm
±20 %
Suppressor choke, axial, 3 µH, 2 A, MISC-3R0M-01
Order No.:
 74D362
Manufacturer:
 Fastron
Manufacturer SKU:
 MISC-3R0M-01
Available: 1,538 pcs. Leadtime: 7 Weeks **
Total Price: 1.86 € *
1 pcs.
1.8564 €
10 pcs.
1.5470 €
100 pcs.
1.3209 €
250 pcs.
1.2019 €
1000 pcs.
1.0948 €
3 µH
2 A
93 mΩ
axial
suppressor choke
12 mm
±20 %
Suppressor choke, axial, 2 µH, 3 A, MISC-2R0M-01
Order No.:
 74D361
Manufacturer:
 Fastron
Manufacturer SKU:
 MISC-2R0M-01
Available: 2,155 pcs. Leadtime: 10 Weeks **
Total Price: 1.86 € *
1 pcs.
1.8564 €
10 pcs.
1.5470 €
100 pcs.
1.3209 €
250 pcs.
1.2019 €
1000 pcs.
1.0948 €
2 µH
3 A
54 mΩ
axial
suppressor choke
12 mm
±20 %
Suppressor choke, axial, 1 µH, 4 A, MISC-1R0M-01
Order No.:
 74D360
Manufacturer:
 Fastron
Manufacturer SKU:
 MISC-1R0M-01
Available: 752 pcs. Available in 4 Days: 680 pcs. Leadtime: 1 Week **
Total Price: 2.50 € *
1 pcs.
2.4990 €
10 pcs.
1.5589 €
50 pcs.
1.3685 €
250 pcs.
1.1900 €
1000 pcs.
1.0353 €
1 µH
4 A
18 mΩ
axial
suppressor choke
12 mm
±20 %
