1210F-3R3J-01 | Fastron

RF choke, SMD 1210, 3.3 µH, 425 mA, 1210F-3R3J-01

Order No.: 74D3114
EAN: 4099889009033
MPN:
1210F-3R3J-01
Series: 1210F

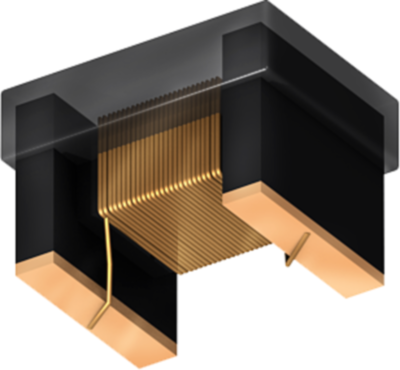

1210F-3R3J-01 Fastron Fixed Inductors Image 1
1210F-3R3J-01 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
0.4165 € *
Available in 4 Days: 502 pcs. - if ordered today
Total Price:
4.17 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4165 €
50 pcs.
0.3689 €
250 pcs.
0.3332 €
1000 pcs.
0.2975 €
2000 pcs.
0.2701 €
*incl. VAT plus shipping costs
Subject to prior sale

Chip inductor for RF applications, type Fastron 1210AS./1210F.

Size 1210, molded in epoxy resin, smooth finish. Solderable up to max. +260 °C/10 s.

With ferrite carrier material, type 1210F.

Technical specifications
Filter Property Value
Inductance 3.3 µH
DC current 425 mA
DC resistance 0.55 Ω
Design SMD 1210
Version RF choke
Quality Q Q 30
Width 3 mm
Height 2.4 mm
Tolerance ±5 %
Measuring frequency 7.96 MHz
Length 3.8 mm
Logistics
Property Value
Country of origin MY
Original Packaging Reel with 800 pieces
Customs tariff number 85045000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
