1210F-390K-01 | Fastron

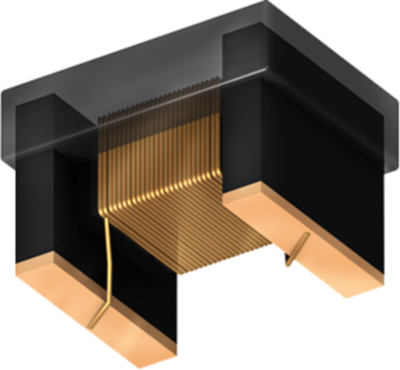

RF choke, SMD 1210, 39 µH, 220 mA, 1210F-390K-01
Unit Price (€ / pc.)
0.4046 € *
Available in 4 Days: 602 pcs. - if ordered today
RF inductor, 1210F-390K-01, FASTRON
The 1210F-390K-01 is a chip inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Applications
- Oscillator and signal generators
- Mobile telecommunication
- Automotive Subsystems
- Wireless communication
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 3.8 mm | |
| DC current | 220 mA | |
| Height | 2.4 mm | |
| Inductance | 39 µH | |
| Quality Q | Q 25 | |
| Width | 3 mm | |
| Design | SMD 1210 | |
| DC resistance | 2.05 Ω | |
| Version | RF choke | |
| Tolerance | ±10 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 800 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
