1210F-221K-01 | Fastron

RF choke, SMD 1210, 220 µH, 115 mA, 1210F-221K-01

Order No.: 79D5686
EAN: 4099891561277
MPN:
1210F-221K-01
Series: 1210F
1210F-221K-01 Fastron Fixed Inductors

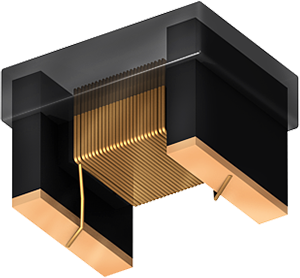

Image may differ
Unit Price (€ / pc.)
0.4760 € *
Available in 4 Days: 300 pcs. - if ordered today
Total Price:
380.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
800 pcs.
0.4760 €

RF inductor, 1210F-221K-01, Fastron

This wire wound chip inductor is designed for radio frequency (RF) applications that require optimal Q on high frequency circuits. Its gold flash pad metallization provides better solderability for a higher yield in production. Additionally, their encapsulation not only protects the winding but also allows for surface mount assembly.

Applications

  • Mobile telecommunication
  • Automotive subsystems
  • Wireless communication
Technical specifications
Filter Property Value
Version RF choke
Width 3 mm
Measuring frequency 0.796 MHz
Height 2.4 mm
Design SMD 1210
Tolerance ±10 %
Inductance 220 µH
Quality Q Q 25
DC resistance 7.5 Ω
DC current 115 mA
Length 3.8 mm
Logistics
Property Value
Original Packaging Reel with 100 pieces
Country of origin MY
Customs tariff number 85045000
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
