1210AS-R10J-01 | Fastron
RF choke, SMD 1210, 100 nH, 980 mA, 1210AS-R10J-01
Unit Price (€ / pc.)
0.4046 € *
Available in 4 Days: 601 pcs. - if ordered today
Total Price:
0.40 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4046 €
10 pcs.
0.3570 €
100 pcs.
0.3094 €
500 pcs.
0.2618 €
1000 pcs.
0.2380 €
*incl. VAT plus shipping costs
Subject to prior sale

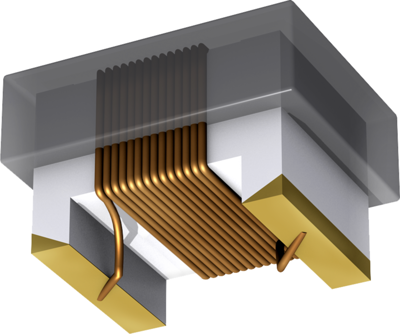

Chip inductor for RF applications, type Fastron 1210AS./1210F.
Size 1210, molded in epoxy resin, smooth finish. Solderable up to max. +260 °C/10 s.
With ceramic carrier material, type 1210AS.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Measuring frequency | 350 MHz | |
| Design | SMD 1210 | |
| DC current | 980 mA | |
| Quality Q | Q 60 | |
| Inductance | 100 nH | |
| Version | RF choke | |
| Length | 3.8 mm | |
| Tolerance | ±5 % | |
| Height | 2.4 mm | |
| DC resistance | 0.24 Ω | |
| Width | 3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | MY |
| Original Packaging | Reel with 1 piece |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
