1210AS-068J-01 | Fastron
RF choke, SMD 1210, 68 nH, 1 A, 1210AS-068J-01
Unit Price (€ / pc.)
0.3689 € *
Available: 524 pcs.
Available in 4 Days: 402 pcs. - if ordered today
Total Price:
3.69 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3689 €
50 pcs.
0.3213 €
250 pcs.
0.2856 €
1000 pcs.
0.2570 €
2000 pcs.
0.2356 €
*incl. VAT plus shipping costs
Subject to prior sale

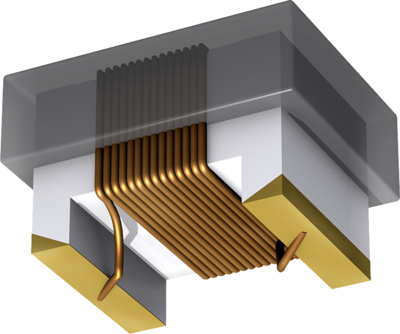

Chip inductor for RF applications, type Fastron 1210AS./1210F.
Size 1210, molded in epoxy resin, smooth finish. Solderable up to max. +260 °C/10 s.
With ceramic carrier material, type 1210AS.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 3.8 mm | |
| DC current | 1 A | |
| Height | 2.4 mm | |
| Inductance | 68 nH | |
| Quality Q | Q 65 | |
| Measuring frequency | 350 MHz | |
| Width | 3 mm | |
| Design | SMD 1210 | |
| DC resistance | 0.2 Ω | |
| Version | RF choke | |
| Tolerance | ±5 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 1 piece |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
