1210AS-033J-01 | Fastron
RF choke, SMD 1210, 33 nH, 1 A, 1210AS-033J-01
Unit Price (€ / pc.)
0.4046 € *
Available in 4 Days: 501 pcs. - if ordered today

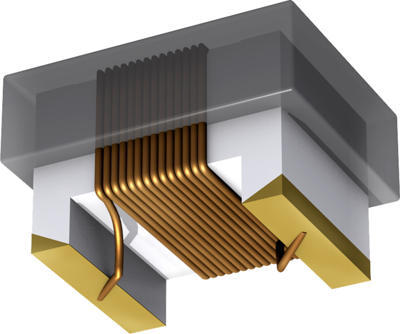

Chip inductor for RF applications, type Fastron 1210AS./1210F.
Size 1210, molded in epoxy resin, smooth finish. Solderable up to max. +260 °C/10 s.
With ceramic carrier material, type 1210AS.

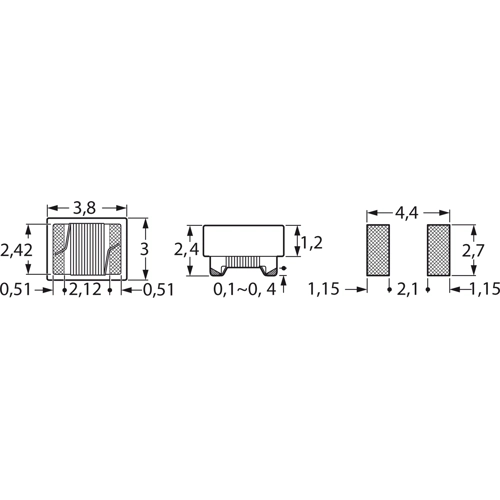

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 3.8 mm | |
| DC current | 1 A | |
| Height | 2.4 mm | |
| Inductance | 33 nH | |
| Quality Q | Q 60 | |
| Measuring frequency | 350 MHz | |
| Width | 3 mm | |
| Design | SMD 1210 | |
| DC resistance | 0.14 Ω | |
| Version | RF choke | |
| Tolerance | ±5 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 1 piece |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
