0805AS-068J-08 | Fastron
RF choke, SMD 0805, 0.068 µH, 400 mA, 0805AS-068J-08
This item is no longer available.
As an alternative, we recommend the following item:
RF choke, SMD 0805, 68 nH, 400 mA, 0805AS-068J-01
Order No.: 79D5994
Manufacturer: Fastron
per pc. 0.2868 € *

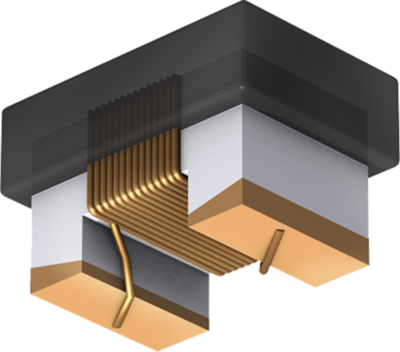

Chip inductor, type Fastron 0805AS./0805AQ./0805F.
Size 0805, molded in epoxy resin, smooth finish. Solderable up to max. +260 °C/10 s.
With ceramic carrier material, type 0805AS.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Quality Q | Q 65 | |
| DC current | 400 mA | |
| Width | 1.8 mm | |
| Height | 1.6 mm | |
| Length | 2.3 mm | |
| DC resistance | 0.38 Ω | |
| Measuring frequency | 500 MHz | |
| Version | RF choke | |
| Design | SMD 0805 | |
| Tolerance | ±5 % | |
| Inductance | 0.068 µH |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | MY |
| Original Packaging | Bulk with 100 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
