0603AS-R15J-08 | Fastron
RF choke, SMD 0603, 150 nH, 200 mA, 0603AS-R15J-08
Unit Price (€ / pc.)
0.2832 € *
Available in 4 Days: 3,500 pcs. - if ordered today

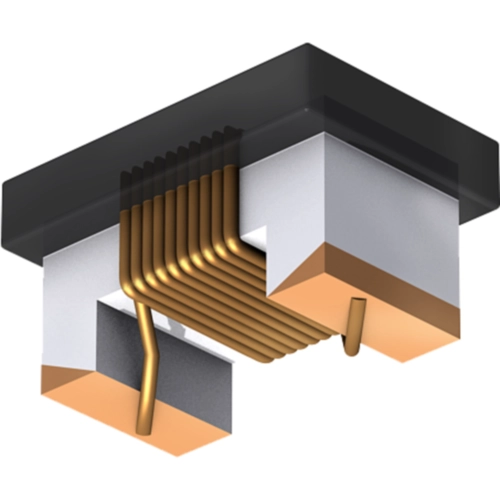

RF inductor, 0603AS-R15J-08, FASTRON
The 0603AS-R15J-08 is a chip inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Applications
- Oscillator and signal generators
- Mobile telecommunication
- Automotive Subsystems
- Wireless communication

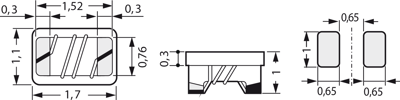

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 1.7 mm | |
| DC current | 200 mA | |
| Height | 1 mm | |
| Inductance | 150 nH | |
| Quality Q | Q 32 | |
| Measuring frequency | 100 MHz | |
| Width | 1.1 mm | |
| Design | SMD 0603 | |
| DC resistance | 900 mΩ | |
| Version | RF choke | |
| Tolerance | ±5 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 1 piece |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
