9722AA01 | fastpoint

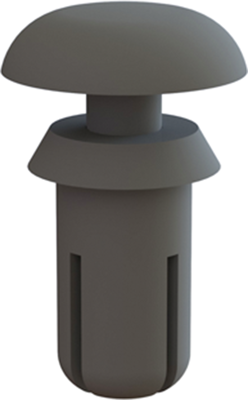

Expanding rivet, A 8.0, H 1.8, L 10, MH 4.1 to 4.2, Pt 7.5 to 8.5 mm, black, 9722AA01
Order No.: 18H6643
EAN: 4099889507164
MPN:
9722AA01
Unit Price (€ / pc.)
0.1833 € *
Available: 60 pcs.
Leadtime: On Request **
Total Price:
1.83 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1833 €
50 pcs.
0.1618 €
100 pcs.
0.1369 €
500 pcs.
0.1154 €
1000 pcs.
0.0904 €
*incl. VAT plus shipping costs
**Subject to prior sale
Expanding rivets, plastic, type Fastpoint 8../9.
Material: PA 6.6. Color: black. Operating temperatures: –35 to +85 °C. Inflammability: UL 94 V-2. Table index, type, dimensions (A, H, L) hole diameter (MH), panel thickness (Pt).
Type: 9722AA01, A 8.0, H 1.8, L 10, MH 4.1 to 4.2, Pt 7.5 to 8.5 mm
Technical specifications
| Version | expanding rivet | |
| Suitable for | clamping range 7.5 - 8.5 mm | |
| Length | 10 mm | |
| Hole diameter | 8 mm | |
| Material | polyamide |
Download
Logistics
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
