9702AA01 | fastpoint

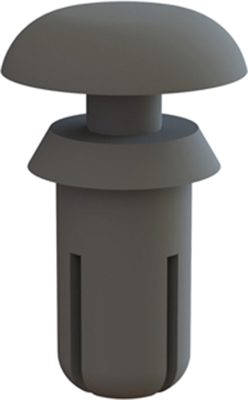

Expanding rivet, hole Ø 6.4 mm, L 6.5 mm, PA, for clamping range 4 - 5 mm, 9702AA01
Order No.: 18H6635
EAN: 4099889507102
MPN:
9702AA01
Unit Price (€ / pc.)
0.1392 € *
Available: 251 pcs.
Total Price:
0.14 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1392 €
10 pcs.
0.1226 €
100 pcs.
0.1047 €
1000 pcs.
0.0904 €
5000 pcs.
0.0774 €
*incl. VAT plus shipping costs
Subject to prior sale
Expanding rivets, plastic, type Fastpoint 8../9.
Material: PA 6.6. Color: black. Operating temperatures: –35 to +85 °C. Inflammability: UL 94 V-2. Table index, type, dimensions (A, H, L) hole diameter (MH), panel thickness (Pt).
Type: 9702AA01, A 6.4, H 1.6, L 6.5, MH 3.1 to 3.2, Pt 4.0 to 5.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | expanding rivet | |
| Suitable for | clamping range 4 - 5 mm | |
| Hole diameter | 6.4 mm | |
| Material | PA | |
| Length | 6.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
