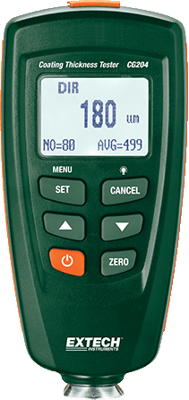

EXTECH CG204 COATING THICKNESS TESTER
Active
Product by Extech at Bürklin Elektronik
Coating Thickness Tester, CG204, extech
The CG204 is a portable meter designed for noninvasive coating thickness measurements. The tester uses dual technology that provides automatic recognition of ferrous (magnetic induction measurement) and non-ferrous (eddy current measurement) substrates. Featuring two measuring modes: Single and Continuous, 400 reading memory storage and user-programmable high/low alarms. Comes with two AAA batteries, USB cable, software, calibration iron, calibration aluminum, precision standards, pouch case, and user manual.
Features
- Automatic substrate recognition
- Magnetic induction for ferrous substrates
- Eddy current measurement for non-ferrous substrates
- Easy-to use menu system
- Two measuring modes: Single and Continuous
- Two working modes: Direct and Group
- Memory stores 400 readings: 80 Direct and 320 Group
- User-programmable high/low alarms
- Min/Max/Average, one or two point calibration
| Resolution | 0.1 μm | |
| Accuracy | ±3 % | |
| measurement range | 0 to 1250 μm |
| Country of origin | CN |
| Customs tariff number | 90318020 |
| RoHS conform | Yes |
| SVHC free | Yes |
