25-21SURC/S530-A2/TR8 | EVERLIGHT

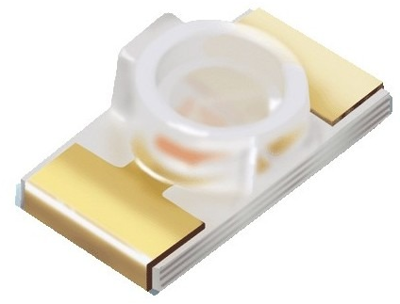

LED, SMD, 1206, red, 624 nm, 0.018 to 0.044 cd, 60°, 25-21SURC/S530-A2/TR8
Unit Price (€ / pc.)
0.0762 € *
Standard delivery time from the manufacturer is: On Request
SMD LED, 25-21SURC/S530-A2/TR8, EVERLIGHT
The 25-21SURC/S530-A2/TR8 is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․Besides, lightweight makes it ideal for miniature applications.
Features
- Compatible with automatic placement equipment
- Compatible with infrared and vapor phase reflow solder process
- Pb-free
- Mono-color type
- Compliance with EU REACH
- Compliance Halogen Free
Applications
- Backlighting in dashboard and switch
- Telecommunication: indicator and backlighting in telephone and fax
- Flat backlight for LCD, switch and symbol
- General use
Technical specifications
| On-State Voltage | 2.4 V | |
| Assembly | SMD | |
| Enclosure | 1206 | |
| Width | 1.6 mm | |
| Forward Current | 25 mA | |
| Length | 3.2 mm | |
| Wavelength | 624 nm | |
| Number of LEDs | 1 | |
| min. operating temperature | -40 °C | |
| Lens | clear | |
| Colour of the LED | red | |
| max. operating temperature | 85 °C | |
| Radiation angle | 60 ° | |
| Light intensity min. | 0.018 cd | |
| Light intensity typ. | 0.044 cd |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85414100 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
