005.23.301 | Ettinger

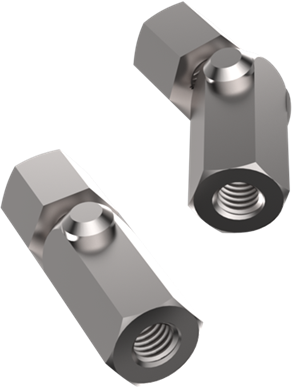

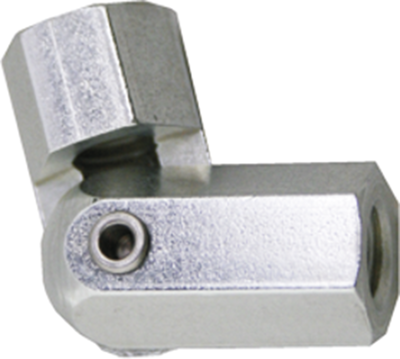

Hexagon joint bolt, internal/internal thread, M3/M3, 30 mm, steel, galvanized, 005.23.301
Order No.: 17H936
EAN: 4099889490596
MPN:
005.23.301
5.23.301
Unit Price (€ / pc.)
3.8318 € *
Available: 1 pcs.
Available in 5 Days: 800 pcs. - if ordered today
Total Price:
3.83 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8318 €
10 pcs.
3.4867 €
50 pcs.
3.1297 €
100 pcs.
2.9631 €
500 pcs.
2.7846 €
*incl. VAT plus shipping costs
Subject to prior sale
Joint bolts made of galvanized steel, type 05.
For mounting parts with stiff swiveling mechanism, for inclination of objects at any angle, e.g. work panels, PCBs etc..

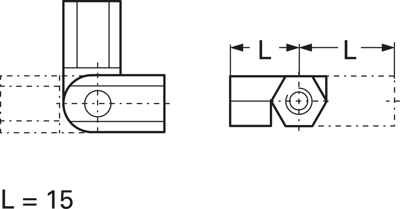

Technical attributes (type, for screws, dimension L): 23.301, M 3, 15/15 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | joint bolt | |
| Thread size | M3/M3 | |
| Length | 30 mm | |
| spanner size | 5.5 mm | |
| Material | steel, galvanized | |
| Bolt length | 30 mm | |
| Colour | silver | |
| Leg length | 15 mm | |
| Inner diameter | 3 mm | |
| Version | internal/internal thread | |
| Design | hexagon |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 73181900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
