005.23.201 | Ettinger
Hexagon joint bolt, internal/internal thread, M3/M3, 20 mm, steel, galvanized, 005.23.201
Order No.: 17H932
EAN: 4099889490589
MPN:
005.23.201
5.23.201
Unit Price (€ / pc.)
3.5105 € *
Available: 144 pcs.
Available in 5 Days: 220 pcs. - if ordered today
Total Price:
3.51 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5105 €
10 pcs.
3.1892 €
50 pcs.
2.8679 €
100 pcs.
2.7132 €
500 pcs.
2.5466 €
*incl. VAT plus shipping costs
Subject to prior sale

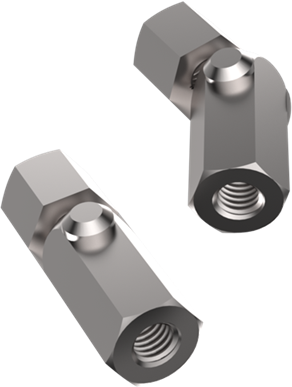

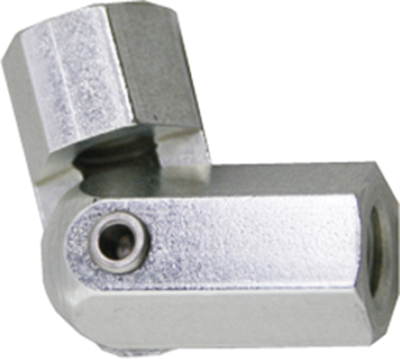

Joint bolts made of galvanized steel, type 05.
For mounting parts with stiff swiveling mechanism, for inclination of objects at any angle, e.g. work panels, PCBs etc..

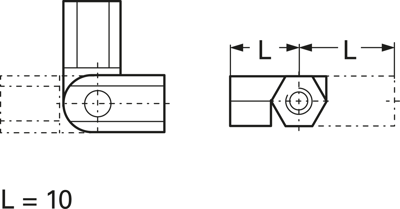

Technical attributes (type, for screws, dimension L): 23.201, M 3, 10/10 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | joint bolt | |
| Version | internal/internal thread | |
| Thread size | M3/M3 | |
| Bolt length | 20 mm | |
| Length | 20 mm | |
| Design | hexagon | |
| spanner size | 5.5 mm | |
| Internal thread length | 5 mm | |
| Inner diameter | 3 mm | |
| Leg length | 10 mm | |
| Material | steel, galvanized | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 73181900 |
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
