005.22.201 | Ettinger
Hexagon joint bolt, internal/internal thread, M2.5/M2.5, 20 mm, steel, galvanized, 005.22.201
Order No.: 17H930
EAN: 4099889490572
MPN:
005.22.201
5.22.201
Unit Price (€ / pc.)
2.6775 € *
Available: 5 pcs.
Available in 5 Days: 4,870 pcs. - if ordered today
Total Price:
2.68 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6775 €
10 pcs.
2.4395 €
50 pcs.
2.1896 €
100 pcs.
2.0706 €
500 pcs.
1.9516 €
*incl. VAT plus shipping costs
Subject to prior sale

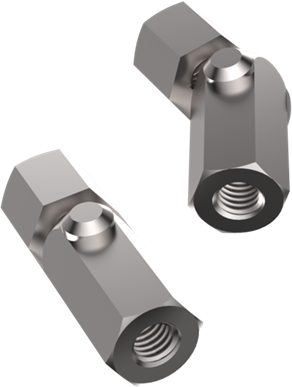

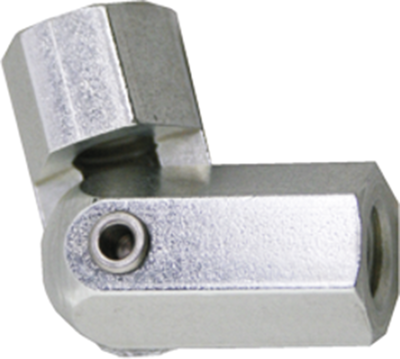

Joint bolts made of galvanized steel, type 05.
For mounting parts with stiff swiveling mechanism, for inclination of objects at any angle, e.g. work panels, PCBs etc..

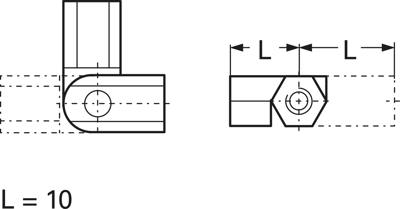

Technical attributes (type, for screws, dimension L): 22.201, M 2.5, 10/10 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Bolt length | 20 mm | |
| Internal thread length | 5 mm | |
| Colour | silver | |
| Thread size | M2.5/M2.5 | |
| Length | 20 mm | |
| Design | hexagon | |
| spanner size | 5 mm | |
| Material | steel, galvanized | |
| Version | internal/internal thread | |
| Product type | joint bolt | |
| Inner diameter | 2.5 mm | |
| Leg length | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 73181900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
