ET5H6ADJY | ETEK Microelectronics

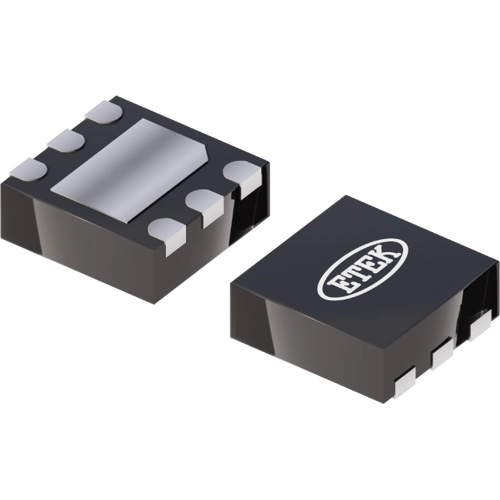

Voltage regulators, 1-5 V, 300 mA, positive, DFN-6, ET5H6ADJY
Order No.: 71S0340
MPN:
ET5H6ADJY
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1981 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1.98 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1981 €
100 pcs.
0.1652 €
250 pcs.
0.1255 €
1000 pcs.
0.1090 €
3000 pcs.
0.0925 €
*incl. VAT plus shipping costs
Subject to prior sale
High Input Ultra-high PSRR, ET5H6ADJY, ETEK Microelectronics
The ET5H6ADJY is a high-input-voltage, ultra-high-PSRR 300 mA LDO with an enable function and an adjustable output ranging from 1.0 V to 5.0 V. It is designed specifically for portable battery-powered applications that require low quiescent current. The typical consumption of 50 μA ensures long battery life, and the dynamic transient boost feature improves device transient response for wireless communication applications.
Features
- Excellent Load/Line Transient Response
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | DFN-6 | |
| Version | adjustable | |
| Number of Regulators | 1 | |
| Input voltage AC | 3-24 V | |
| Output voltage DC | 1-5 V | |
| Output current | 300 mA | |
| Polarity | positive | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85429000 |
| MSL | MSL 3 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
