ET5A5ADJZB | ETEK Microelectronics

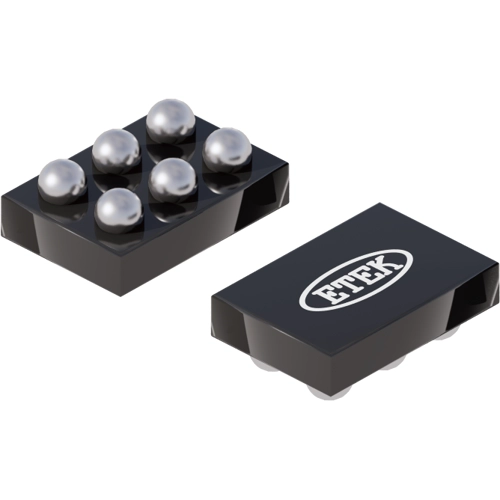

Voltage regulators, 0.5-3 V, 1.5 A, positive, WLCSP-6, ET5A5ADJZB
Order No.: 71S0084
MPN:
ET5A5ADJZB
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
3.81 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3808 €
100 pcs.
0.3094 €
250 pcs.
0.2374 €
1000 pcs.
0.2062 €
3000 pcs.
0.1749 €
*incl. VAT plus shipping costs
Subject to prior sale
Dual-Rail, ET5A5ADJZB, ETEK Microelectronics
The ET5A5ADJZB is CMOS-based low-dropout, low-power linear regulators, offering 1500mA with NMOS pass transistor and a separate bias supply voltage(VBIAS). The device provides very stable, accurate output voltage with low noise, high ripple rejection and low supply current suitable for space constrained, noise sensitive application. ET5A5ADJZB consists of an accurate voltage-reference block, an error amplifier, a thermal-shutdown circuit, and a current limit circuit.
Features
- Built-in Over Current Protection and Thermal Shutdown circuit
- Built-in Auto-discharging Circuit (optional)
- Built-in Under Voltage Lock-out
Applications
- Telecom Industrial and Consumer Equipment
- FPGA, DSP and Logic Power Supplies
- Switching Power Supply Post Regulation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | WLCSP-6 | |
| Version | adjustable | |
| Number of Regulators | 1 | |
| Input voltage AC | 5.5 V | |
| Output voltage DC | 0.5-3 V | |
| Output current | 1.5 A | |
| Polarity | positive | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85429000 |
| MSL | MSL 3 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
