0612EDLF | Ersa

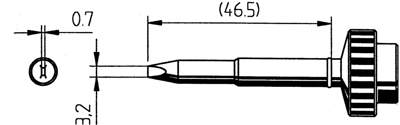

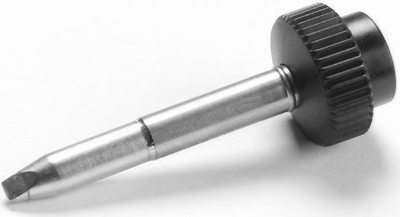

Soldering tip, Chisel shaped, (T x L x W) 0.7 x 64 x 3.2 mm, 0612EDLF
Discontinued
As an alternative, we recommend the following item:
Soldering tip, Chisel shaped, (W) 3.2 mm, 0612EDLF/SB
Order No.: 04L256
Manufacturer: Ersa
per pc. 27.0249 € *
*incl. VAT plus shipping costs
Ersadur long-life Soldering tip for soldering stations Digital 2000A (Tech Tool), Digital 60 A and Micro-Con 60 iA, type Ersa 0612.
Type: 0612EDLF, chisel, 3.2 mm
Technical specifications
| Version | soldering tip | |
| Width | 3.2 mm | |
| Thickness | 0.7 mm | |
| Suitable for | CPS 60.10, DIGITAL 60 A, TECH TOOL | |
| Length | 64 mm | |
| Peak type | Chisel shaped |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85159080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
