839018 | ERNI

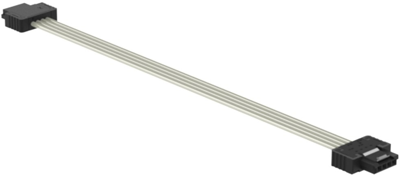

SRC connection cable, 300 mm, 4, 2.8 A
Active
Product by ERNI at Bürklin Elektronik
Female connectors dressed with flat ribbon cable, type 839.
For the male connectors described above, both ends with female connectors and flat ribbon cable AWG 26, with PVC insulation and red pilot wire; Operating voltage: max. 300 V. Current rating: 2.8 A at +20 °C, temperature range: –20 to +105 °C, flame retardant to UL 94 VW-1.
With 2 female connectors, 180° cable exit, type 839.
Technical attributes (type, number of poles, length): 839018, 4-pole, 300 mm
| Connection (1) | socket | |
| Connection (2) | socket | |
| Version | Flat cable | |
| AWG cross-section | AWG 26 | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 0.3 m |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
