234198-E | ERNI

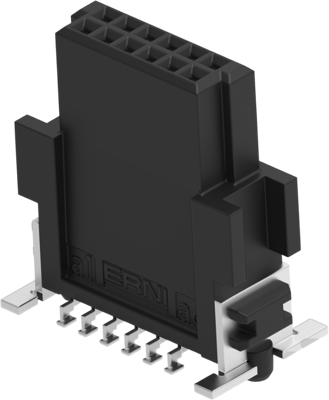

Socket header, 12 pole, pitch 1.27 mm, straight, black, 234198-E
Unit Price (€ / pc.)
4.2602 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
4.26 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2602 €
10 pcs.
3.9508 €
25 pcs.
3.6890 €
50 pcs.
3.3558 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Mount Receptacle, 234198-E, ERNI
PCB Mount Receptacle, Vertical, Board-to-Board, 12 Position, 1.27 mm Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI SMC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Type of locking | Yes | |
| Rated current | 1.7 A | |
| Orientation | straight | |
| Colour | black | |
| Grid | 1.27 mm | |
| Connection | SMD | |
| Number of rows | 2 | |
| Version | socket header | |
| Pin number | 12 pole | |
| Connection plating | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
