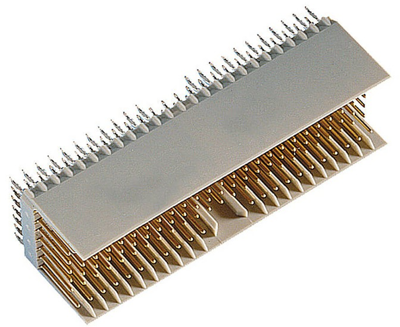

Male connector, 169 pole, pitch 2 mm, straight, 243-61310-15

Order No.:  56F7638
MPN:
243-61310-15
EAN: 4099891037635
ept
default L
front L
default S
front S
Images may differ
Unit Price (€ / pc.)
2.7251 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Add to Cart
Total Price:
2.73 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.7251 €
Description

PCB connectors, 2.0 mm Hardmetric, type ept 243-../244-.

Compliant with IEC 61076-4-101. With 2.0 mm grid for direct 90 degree connection of PCBs up to 2.8 mm thickness (press-fit technology, quality class 2), suitable for in-line installation, with chamfered edges; Contact material: gold-plated bronze. Insulator: glass fiber-reinforced polyester. Insulation resistance min. 10^4 Mohm. Operating current at +20° C: 1.5 A. Useful life: > 250 insertion/ removal cycles. Each male connector can be equipped with pin contacts of different lengths (A 8.25 mm. B 9.75 mm and 11.25 mm). Pins C of the outer pin rows f and z are advanced in order to contact the shielding plates of the female connector.

Male connectors design AB25, type 243-6.

Technical attributes (type, row: assembly, number of poles): 243-61310-15, a - e: A, f and z: C, 169-pole

Technical specifications
Connection press-in connection
Design AB25
Contact type pin
contact surface gold-plated
Rated current 1 A
Orientation straight
Pin number 169 pole
Grid 2 mm
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85389099
Original Packaging Bar with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Search results: 1 item in 2 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Pin number
Rated current
Design
Contact type
contact surface
Grid
Connection
Orientation
Male connector, 169 pole, pitch 2 mm, straight, 243-61310-15
Order No.:
 56F7638
Manufacturer:
 ept
Manufacturer SKU:
 243-61310-15
Total Price: 2.73 € *
1 pcs.
2.7251 €
Available: 0 pcs.
Leadtime: 5 Weeks **
169 pole
1 A
AB25
pin
gold-plated
2 mm
press-in connection
straight
Male connector, 125 pole, pitch 2 mm, straight, 243-61010-15
Order No.:
 56F7636
Manufacturer:
 ept
Manufacturer SKU:
 243-61010-15
Total Price: 2.19 € *
1 pcs.
2.1896 €
Available: 0 pcs.
Leadtime: 5 Weeks **
125 pole
1.5 A
AB25
pin
gold-plated
2 mm
press-in connection
straight
