102-80065 | ept

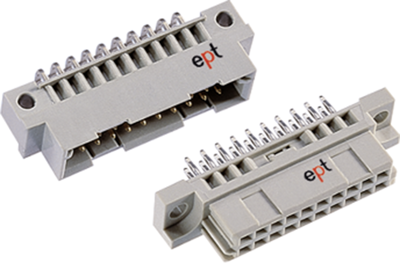

Female connector, type 3B, 20 pole, a-b, pitch 2.54 mm, solder pin, straight, tin-plated, 102-80065
Order No.: 52F7022
EAN: 4099891020866
MPN:
102-80065
Unit Price (€ / pc.)
1.3209 € *
Available: 15 pcs.
Leadtime: 5 Weeks **
Female connector DIN 41612/IEC 60603-2, type ept.
Requirements class 2; Quality class to DIN EN 60603-2: II/400 insertion/removal cycles. Insulation resistance: min. 1000 Gohm. Spring contact: double, double spring, two-sided. Insulator: PBTP, glass fiber-reinforced (UL 94 V-0), PC, glass fiber-reinforced (UL 94 V-1). Operating temperatures: –55 to +125 °C (design H = –65 to +125 °C). Certifications: UL.
FeFemale connector B/3, straight, with solder pins.
Pin: 0.6 x 0.6 mm.
Technical attributes (type, number of poles, contact row assignments, overall length): 102–80065, 20–pole, a–b, 4.0 mm, 39 mm
Technical specifications
| Performance level | 2 | |
| Connection | solder pin | |
| Design | 3B | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Contact row assignment | a-b | |
| Rated current | 1.5 A | |
| Orientation | straight | |
| Pin number | 20 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
