07.17502.21 | EOZ

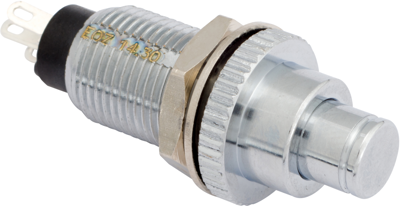

Pushbutton, 1 pole, chrome, unlit , 4.5 A/12 V, mounting Ø 10 mm, IP67, 07.17502.21
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
30.4997 € *
Next delivery: 20 pcs. on 2026-06-05
Push button, 1-polig, Installation diameter: 10 mm, Contact: silver, Functiion: ON-MOM, Design: chrome plated, Electrical life: 100.000 operations.
Electrical: Specifications:
Operating Voltage: Standard Silber Kontakte 10 V, 50 mA
Switch rating: 220 V - 1,5 A, 110 V - 2,5 A, 48 V - 1 A, 24 V - 2,25 A, 12 V - 4,5 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Actuator colour | chrome | |
| Breaking capacity | 4.5 A/12 V | |
| illuminated | No | |
| Printed | No | |
| Vandal-proof | No | |
| Connection | solder connection | |
| Design | round | |
| contact surface | silver-plated | |
| Installation diameter | 10 mm | |
| Protection class | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
