1SNK506011R0000 | ENTRELEC

Feed through terminal, spring-clamp connection, 0.2-6.0 mm², 3 pole, 32 A, 8 kV, gray, 1SNK506011R0000

Order No.: 72P4410
MPN:
1SNK506011R0000

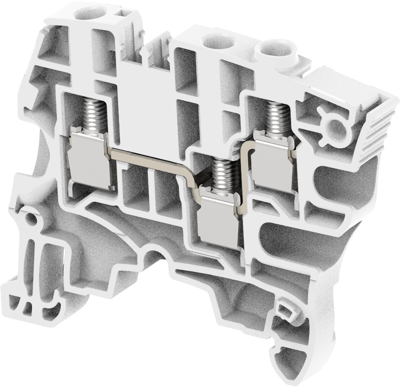

1SNK506011R0000 ENTRELEC Series Terminals Image 1

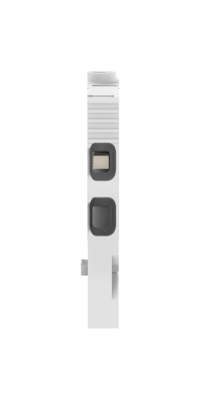

1SNK506011R0000 ENTRELEC Series Terminals Image 2

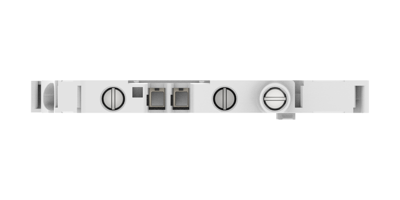

1SNK506011R0000 ENTRELEC Series Terminals Image 3

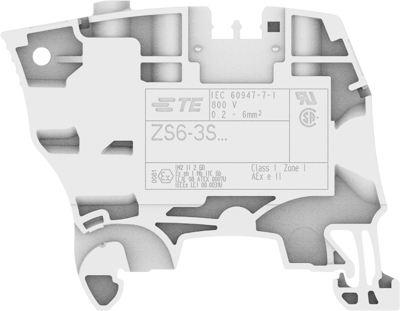

1SNK506011R0000 ENTRELEC Series Terminals Image 4

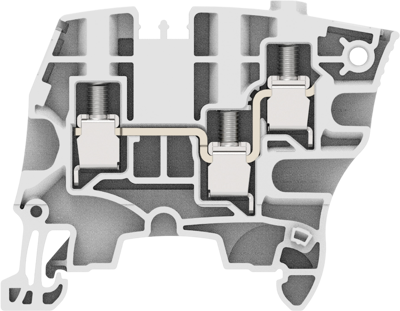

1SNK506011R0000 ENTRELEC Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
4.0460 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0460 €
10 pcs.
3.7485 €
50 pcs.
3.4867 €
100 pcs.
3.2606 €
*incl. VAT plus shipping costs
Subject to prior sale

DIN Rail terminal block, 1SNK506011R0000, ENTRELEC

Screw Clamp Terminal Block, Feed-Through, Gray, 6 mm Spacing, 3 Position, DIN Rail, -55 - 110 °C, ENTRELEC SNK.

Technical specifications
Pin number 3 pole
Version feed through terminal
AWG cross-section AWG 24 to 10
Cable cross-section 0.2-6.0 mm²
Rated Voltage 800 V
Number of terminals 1
Connection spring-clamp connection
Height 62 mm
Rated surge voltage 8 kV
Length 48.2 mm
Colour gray
Rated current 32 A
Logistics
Customs tariff number 85369010
Country of origin PL
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
