ALE1210 | ELC
Power supply, 10 to 15 VDC, 10 A, 120 W, ALE1210
Order No.: 24K9011
EAN: 3760244880260
MPN:
ALE1210
Unit Price (€ / pc.)
174.93 € *
Standard delivery time from the manufacturer is: 1 Week

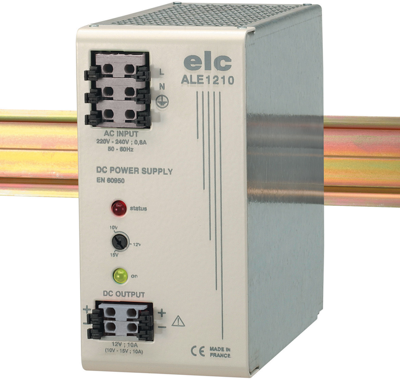

DIN-rail power supply unit, ALE1210, ELC
DIN rail power supply elc ALE1210, 120 Watts, 12 V ; 10 to 15V 10 A
Features
- 120 W available
- Output ripple < 3mV effective.
- Built-in active power factor correction (PFC)
- Output voltage adjustable from 10 to +15 Volt.
- Direct mounting on DIN rail
- Double spring terminal block for wires of the cross section.
Safety devices
- Against short circuits due to current limitation.
- Against overcurrents on the primary circuit of the transformer by fuse .
- Against overvoltages at the output by voltage limitation to 17 V.
Applications
- Automation and process control, industrial controls, switch-off
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 120 mm | |
| Degree of protection (IP) | IP30 | |
| Power | 120 W | |
| Input voltage AC | 190-253 VAC | |
| Output current | 10 A | |
| Number of outputs | 1 | |
| Height | 120 mm | |
| Output voltage DC | 10 to 15 VDC | |
| Depth | 60 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
