ALE1205 | ELC
Power supply, 10 to 15 VDC, 5 A, 60 W, ALE1205
Order No.: 24K9010
EAN: 3760244880253
MPN:
ALE1205
Unit Price (€ / pc.)
91.63 € *
Standard delivery time from the manufacturer is: 12 Weeks

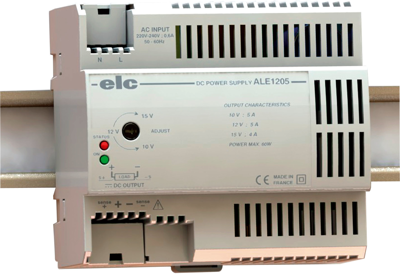

DIN-rail power supply unit, ALE1205, ELC
DIN rail power supply elc ALE1205, 60 Watts, 12 V ; 10 to 15V 5 A
Features
- 60 W available
- Output ripple < 3mV effective.
- Remote sensing to overcome voltage drop in the lines.
- Output voltage adjustable from 10 to +15 Volt.
- Spring terminal block for wires of the cross section.
- Resistant to shock : Polycarbonate housing
- Direct mounting on DIN rail or wall mounting.
Safety devices
- Against short-circuits due to current limitation.
- Against overcurrents on the primary circuit of the transformer by fuse .
- Against excessive heating by thermal circuit breakers.
- Cover on input-output terminal block
Applications
- Automation and process control, industrial controls, switch-off
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 5 A | |
| Output voltage DC | 10 to 15 VDC | |
| Input voltage AC | 190-264 VAC | |
| Power | 60 W | |
| Degree of protection (IP) | IP30 | |
| Width | 135 mm | |
| Height | 85 mm | |
| Depth | 115 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
